How to Use LDR and Buzzer with Arduino
In this tutorial will walk you through using an LDR and Buzzer with Arduino to create a project that reacts to changes in light intensity — perfect for a light alarm, security system, or smart automation trigger.
In this guide, we’ll explain how an LDR works, how to read its values with Arduino, and how to activate a buzzer when the light crosses a specific threshold.

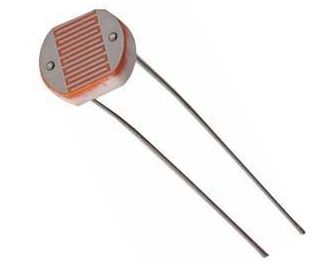

What is an LDR?
An LDR (Light Dependent Resistor) is a variable resistor whose resistance changes based on the amount of light falling on it:
-
More Light → Lower Resistance
-
Less Light → Higher Resistance
-
It’s commonly used in automatic street lights, light meters, alarm systems, and more.

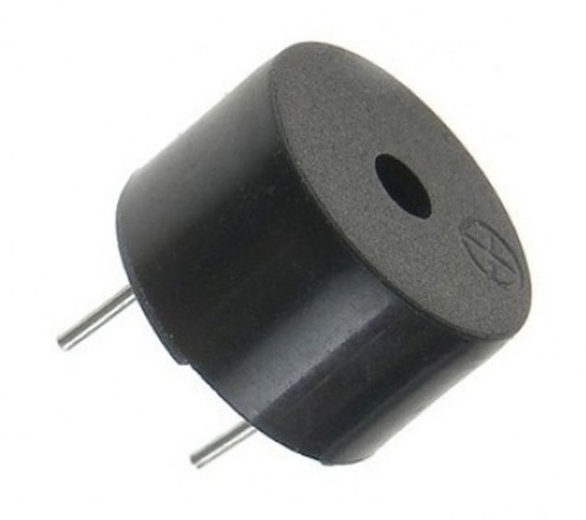

What is a Buzzer?
A buzzer is a small audio signaling device that generates a tone when voltage is applied. Buzzers are often used in alarm systems, notifications, and indicators.
Components Required for connecting LDR and Buzzer with Arduino:
-
1 × Arduino UNO (or Nano/Mega)
-
1 × LDR Sensor
-
1 × Buzzer (Active or Passive)
-
1 × 10KΩ Resistor (for voltage divider)
-
Breadboard
-
Jumper Wires
-
USB Cable
Circuit Diagram for connecting LDR and Buzzer with Arduino:
| Component | Connect To |
|---|---|
| LDR One End | 5V |
| LDR Other End | A0 + One leg of 10KΩ resistor |
| 10KΩ Other End | GND |
| Buzzer + | Digital Pin 8 |
| Buzzer – | GND |
Code for LDR and Buzzer with Arduino:
const int ldrPin = A0; // LDR connected to analog pin A0
const int buzzerPin = 11; // Buzzer connected to digital pin 8
int threshold = 500; // Light threshold value (adjust as needed)
void setup() {
pinMode(buzzerPin, OUTPUT);
Serial.begin(9600); // Start serial monitor
}
void loop() {
int ldrValue = analogRead(ldrPin);
Serial.println(ldrValue); // Debug: See light values
if (ldrValue < threshold) {
digitalWrite(buzzerPin, HIGH); // Turn on buzzer in dark
} else {
digitalWrite(buzzerPin, LOW); // Turn off buzzer in light
}
delay(200); // Short delay to stabilize readings
}
Applications of LDR and Buzzer:
-
Light-Based Alarm System: Buzzes in darkness or low light.
-
Security Device: Triggers buzzer when light path is broken (like a door opens).
-
Day/Night Detection: Automate appliances based on light levels.
-
Art Installations: Trigger sound based on hand movement or light shadow
Troubleshooting of LDR and Buzzer with Arduino:
| Problem | Solution |
|---|---|
| LDR value stuck | Check connections or resistor placement |
| Buzzer always ON | Light too low or threshold too high |
| No buzzer sound | Ensure correct buzzer polarity and pin |
| Serial Monitor shows 0 | Loose breadboard connection or wiring issue |
Conclusion:
This LDR and Buzzer project with Arduino is a simple yet powerful example of how sensors and actuators can be combined to create intelligent systems. Whether you’re a hobbyist, student, or developer, this project gives you the foundation to build more advanced light-triggered alerts or automation setups.
